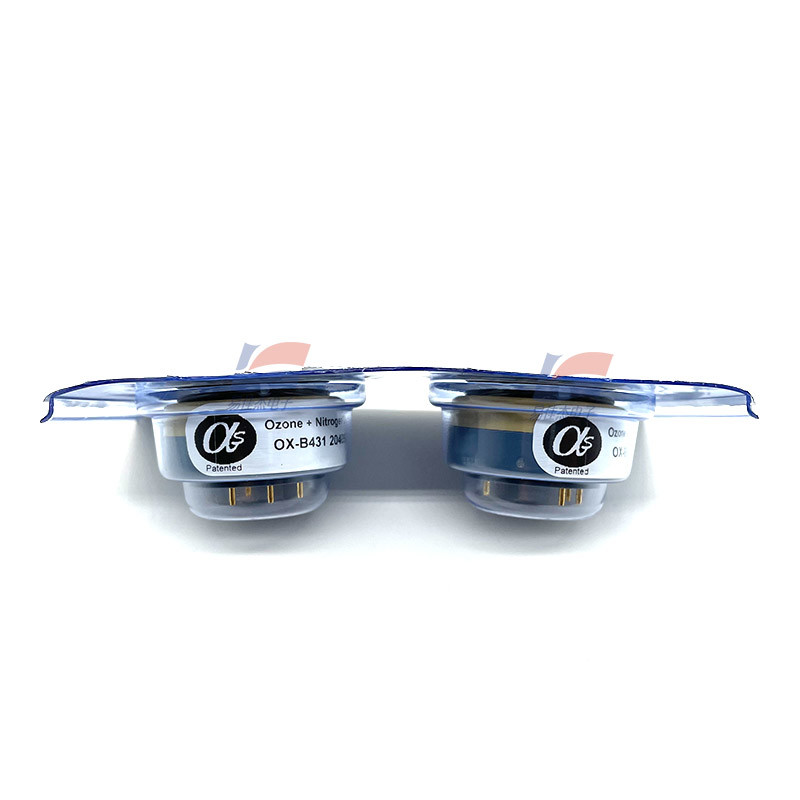

| OX-B431 O3 Sensor Specification |
| OX-B431 O3 Sensor PERFORMANCE |
| Sensitivity | nA/ppm at 1ppm O3 | -225 to -550 |
| Response time | t90 (s) from zero to 1ppm O3 | < 45 |
| Zero current | nA in zero air at 20℃ | -50 to 70 |
| Noise* | ±2 standard deviations (ppb equivalent) | 15 |
| Range | ppm O3 limit of performance warranty | 20 |
| Linearity | ppm error at full scale, linear at zero and 20ppm O3 | < ±0.5 |
| Overgas limit | maximum ppm for stable response to gas pulse | 50 |
| * Tested with Alphasense AFE low noise circuit | |
| | | |
| OX-B431 O3 Sensor LIFETIME |
| Zero drift | ppb equivalent change/year in lab air | 0 to 20 |
| Sensitivity drift | % change/year in lab air, monthly test | < -20 to -40 |
| Operating life | months until 50% original signal (24 month warranted) | > 24 |
| | | |
| OX-B431 O3 Sensor ENVIRONMENTAL |
| Sensitivity @ -20℃ | (% output @ -20℃/output @ 20℃) @ 2ppm O3 | 70 to 90 |
| Sensitivity @ 40℃ | (% output @ 40℃/output @ 20℃) @ 2ppm O3 | 95 to 125 |
| Zero @ -20℃ | nA | 0 to 25 |
| Zero @ 40℃ | nA | 5 to 100 |
| | | |
| OX-B431 O3 Sensor CROSS SENSITIVITY |
| H2S | sensitivity % measured gas @ 5ppm H2S | < 170 |
| NO | sensitivity % measured gas @ 5ppm NO | < 5 |
| Cl2 | sensitivity % measured gas @ 5ppm Cl2 | < 90 |
| SO2 | sensitivity % measured gas @ 5ppm SO2 | < -7 |
| CO | sensitivity % measured gas @ 5ppm CO | < 0.1 |
| C2H4 | sensitivity % measured gas @ 100ppm C2H4 | < 0.1 |
| NH3 | sensitivity % measured gas @ 20ppm NH3 | < 0.1 |
| H2 | sensitivity % measured gas @ 100ppm H2 | < 0.1 |
| CO2 | sensitivity % measured gas @ 5% Vol CO2 | 0.1 |
| Halothane | sensitivity % measured gas @ 100ppm Halothane | < 0.1 |
| | | |
| OX-B431 O3 Sensor KEY SPECIFICATIONS |
| Temperature range | ℃ | -30 to 40 |
| Pressure range | kPa | 80 to 120 |
| Humidity range | % rh continuous | 15 to 85 |
| Storage period | months @ 3 to 20℃ (stored in sealed pot) | 6 |
| Load resistor | Ω (AFE circuit recommended) | 33 to 100 |
| Weight | g | < 6 |
| OX-B431 NO2 Sensor Specification | |
| OX-B431 NO2 Sensor PERFORMANCE |
| Sensitivity to NO2 | nA/ppm at 2ppm NO2 | -250 to -650 |
| Response time | t90 (s) from zero to 2ppm NO2 | < 35 |
| Zero current | nA in zero air at 20℃ | -50 to +70 |
| Noise* | ±2 standard deviations (ppb equivalent) | 15 |
| Range | ppm NO2 limit of performance warranty | 20 |
| Linearity | ppm error at full scale, linear at zero and 20ppm NO2 | < ±0.5 |
| Overgas limit | maximum ppm for stable response to gas pulse | 50 |
| * Tested with Alphasense AFE low noise circuit | |
| | | |
| OX-B431 NO2 Sensor LIFETIME |
| Zero drift | ppb equivalent change/year in lab air | 0 to 20 |
| Sensitivity drift | % change/year in lab air, monthly test | < -20 to -40 |
| Operating life | months until 50% original signal (24 month warranted) | > 24 |
| | | |
| OX-B431 NO2 Sensor ENVIRONMENTAL |
| Sensitivity @ -20℃ | (% output @ -20℃/output @ 20℃) @ 2ppm NO2 | 70 to 90 |
| Sensitivity @ 40℃ | (% output @ 50℃/output @ 20℃) @ 2ppm NO2 | 95 to 110 |
| Zero @ -20℃ | nA | 0 to 25 |
| Zero @ 40℃ | nA | 5 to 50 |
